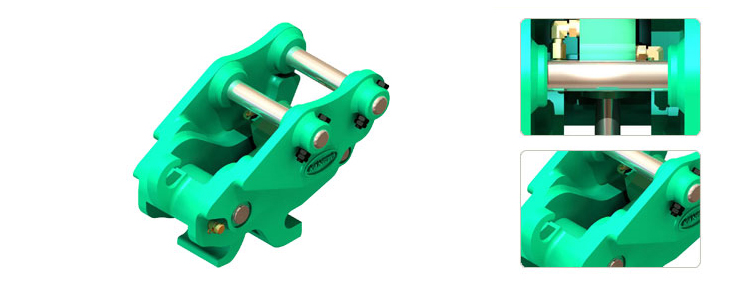

Quick-coupler(Maker)
ITEM Unit

0.8 ~ 1.7 ton

2 ~ 3 ton

Overall Length(L) mm

306 ~ 360

475

Overall Height(H) mm

230 ~ 237

268 ~ 273

Overall Width(W) mm

196 ~ 240

224 ~ 227

Installation Length(L1) mm

100 ~ 119

187 ~ 192

Mounting Length(L2) mm

100 ~ 119

180 ~ 192

Height Between Axeles(H1) mm

159.7 ~ 167

165 ~ 170

Installation Width(W1) mm

95 ~ 105

123 ~ 125

Pin Diameter(Φ) mm

25 ~ 30

30 ~ 40

Application Model

9NX2, 15NX2

20NX2, 25NX2, 30NX2, 35NX2

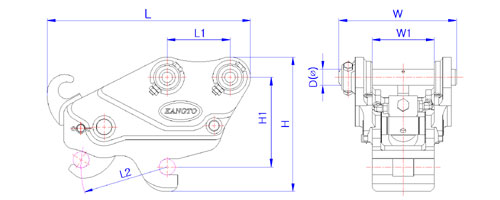

Reference DWG.
