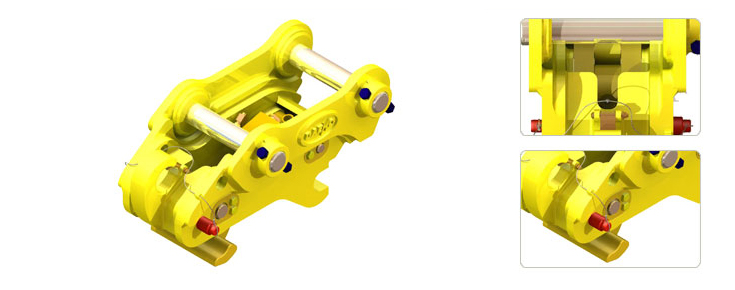

Quick-coupler(Maker)

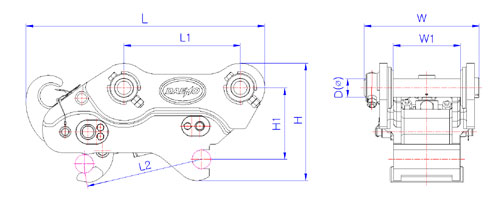

ITEM	Unit	8 ~ 17 ton	20 ~ 30 ton	40 ~ 50 ton
Overall Length(L)	mm	585 ~ 876	936 ~ 1103	1130 ~ 1135
Overall Height(H)	mm	317 ~ 485	485 ~ 610	610 ~ 654.5
Overall Width(W)	mm	307 ~ 495	533.5 ~ 998	668
Installation Length(L1)	mm	275 ~ 410	460 ~ 550	577
Mounting Length(L2)	mm	275 ~ 410	460 ~ 550	577
Height Between Axeles(H1)	mm	185 ~ 285	285 ~ 360	360 ~ 380
Installation Width(W1)	mm	195 ~ 308	332 ~ 432	432
Pin Diameter(Φ)	mm	55 ~ 70	80 ~ 100	100 ~ 120
Working Presure	kaf/㎠	30-220-45-291	45-291-60-320	60 ~ 320
Application Model		DMQ 80 DMQ140 DMQ170	DMQ230 DMQ290 DMQ360 DMQ35-7	DMQ450 DMQ500 DMQ50N-7
Reference DWG.
