Quick-coupler(Maker) - KOMATSU

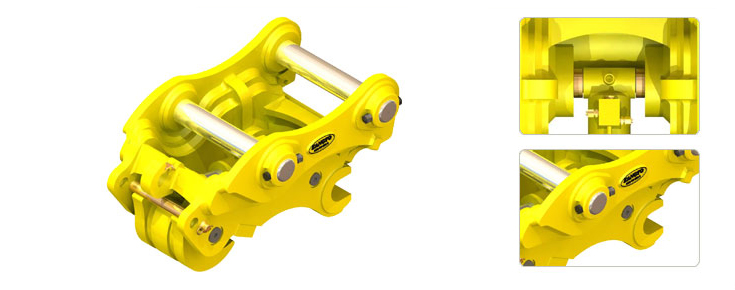

Quick-coupler(Maker)

ITEM	Unit	6 ton	20 ton	30 ton	40 ton
Overall Length(L)	mm	610	911.5	1016.6	1090.5
Overall Height(H)	mm	304	485	551.3	595
Overall Width(W)	mm	303	501	545	594
Installation Length(L1)	mm	310	446 ~ 435	510	537
Mounting Length(L2)	mm	310	446	513	537
Height Between Axeles(H1)	mm	190	285	331.8	345
Installation Width(W1)	mm	200	325 ~ 330	345	370
Pin Diameter(Φ)	mm	50	80	90	100
Application Model		PC 60-7	PC 210-7 PC 270-8 PC 270LC-8	PC 300-8 PC 300LC-8 PC 350-8	PC 400-8 PC 400LC-8 PC 450-8 PC 450LC-8

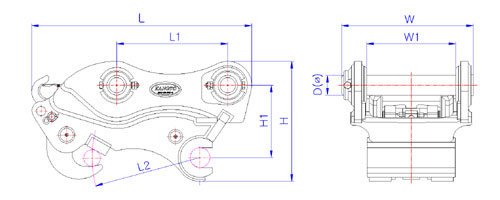

Reference DWG.
