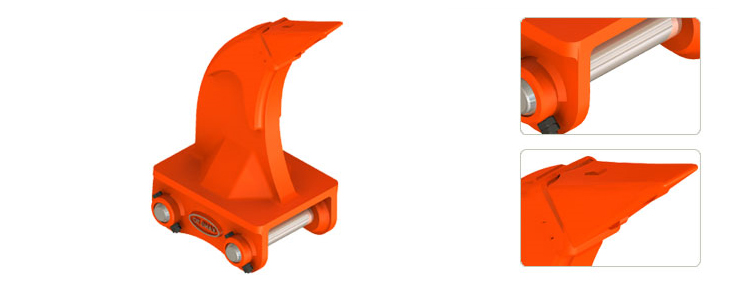

Ripper - KTR300

Ripper

ITEM	Unit	KTR300	Application Model
Overall Length(L)	mm	385 ~ 400	SOLAR50, SOLAR55V, SOLAR50W-V, SOLAR55W-VGP, EC55, MX3W, ROBEX500, ROBEX550-3A, REOBX555, ROBEX555-7, PC300-8, PC300LC-8, PC350-8, PC350LC-8, SK30SR, ZX30U, ZX35U-2, 30NX2, 35NX2, VI030-2, HE50A
Overall Height(H)	mm	674 ~ 694
Overall Width(W)	mm	265 ~ 275
Installation Length(L1)	mm	230 ~ 285
Installation Width(W1)	mm	165

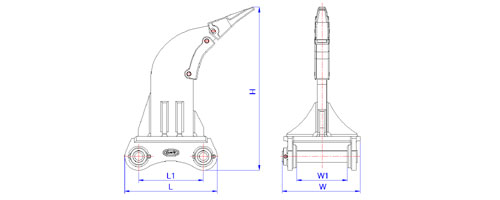

Reference DWG.
