Quick-coupler(Maker) - HITACHI

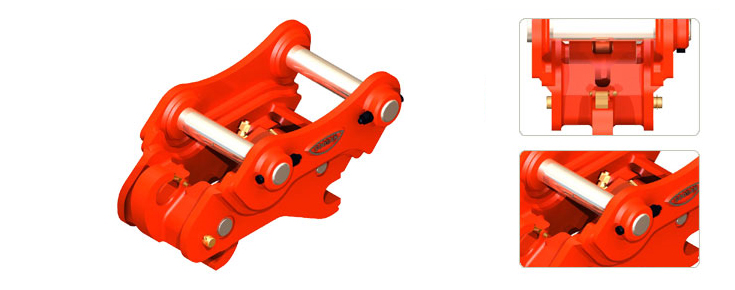

Quick-coupler(Maker)

ITEM	Unit	0.8 ~ 1.7 ton	2 ~ 3 ton	5 ton	7 ton
Overall Length(L)	mm	306.5	475	517.8 ~ 533	610
Overall Height(H)	mm	230 ~ 240	268.3	298	304
Overall Width(W)	mm	175 ~ 209	242	267 ~ 279	304
Installation Length(L1)	mm	86 ~ 118	185 ~ 200	230 ~ 245	310
Mounting Length(L2)	mm	86 ~ 118	185	230 ~ 260	290 ~ 315
Height Between Axeles(H1)	mm	159 ~ 267.3	165	190	190
Installation Width(W1)	mm	90 ~ 118	140	160 ~ 172	200
Pin Diameter(Φ)	mm	25 ~ 30	35 ~ 40	45	50
Application Model		EX08, ZX8U-2 ZX10U-2, EX17U ZX17U-2	EX20U-3, ZX20U-2 ZX27U ZX30U-2, ZX35U-2	ZX50U-2 ZX55UR	ZX70LC
