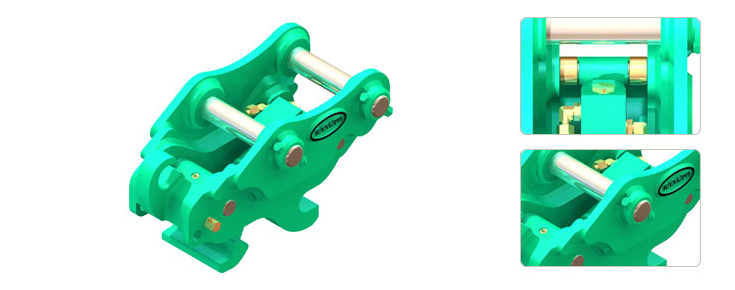

Quick-coupler(Maker) - KOBELCO

Quick-coupler(Maker)

ITEM	Unit	0.8 ~ 1.7 ton	2 ~ 3 ton	5 ~ 6 ton
Overall Length(L)	mm	306 ~ 389	462 ~ 463	529.7
Overall Height(H)	mm	230 ~ 247	276 ~ 277	292
Overall Width(W)	mm	202 ~ 205	220 ~ 242	264
Installation Length(L1)	mm	100 ~ 142	180 ~ 200	228.5 ~ 290
Mounting Length(L2)	mm	118 ~ 154	180 ~ 200	230 (220 ~ 270)
Height Between Axeles(H1)	mm	159.7 ~ 162	165	180
Installation Width(W1)	mm	105 ~ 107	122 ~ 140	151 ~ 180
Pin Diameter(Φ)	mm	25 ~ 30	35 ~ 40	45 ~ 50
Application Model		SK09SR SK13SR SK15SR	SK20SR-3 SK30SR-3	SK55SR SK60V SK100-V

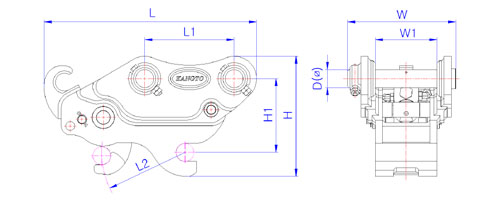

Reference DWG.
