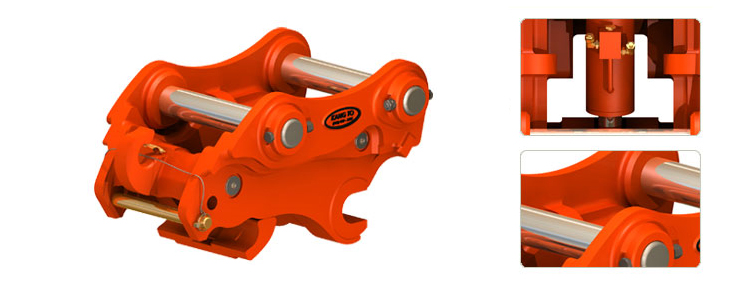

Quick-coupler(KTP Series) - KTP1400

Quick-coupler(KTP Series)

ITEM	Unit	KTP1400	Application Model
Overall Length(L)	mm	976 ~ 1143	SOLAR340, SOLAR360, SOLAR370, SOLAR400, SOLAR420, SOLAR450LC-V, DX340, DX350 EC360BLC, EC460B, MX352, MX452, ROBEX5000LC-7, ROBEX3200LC-7, ROBEX3600LC-3, ROBEX3600LC-7 ROBEX3700, ROBEX4500LC-7 CAT330CL, CAT330DL, CAT330LME CAT345, HL360
Overall Height(H)	mm	558 ~ 610
Overall Width(W)	mm	606 ~ 663
Installation Length(L1)	mm	520 ~ 590
Mounting Length(L2)	mm	520 ~ 590
Height Between Axeles(H1)	mm	337 ~ 360
Installation Width(W1)	mm	386 ~ 439
Pin Diameter(Φ)	mm	90 ~ 120
Reference DWG.
