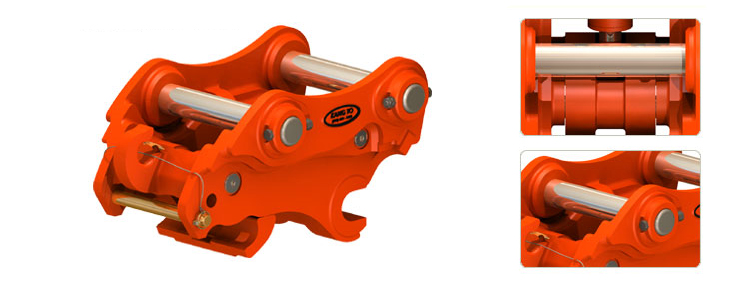

Quick-coupler(KTP Series) - KTP1000

Quick-coupler(KTP Series)

ITEM	Unit	KTP1000	Application Model
Overall Length(L)	mm	1025 ~ 1070	SOLAR 280LC, SOLAR 290LCV, SOLAR 300LCV, DX300LC EC240, EC290BLC, MX292LC, MX295LS, MX255, ROBEX2800K, ROBEX2800KLC, ROBEX2900, ROBEX2900LC-3 ROBEX2900LC-7, ROBEX3000LC-7, CAT324CL, CAT324DL, CAT325CL, CAT325DL HE280LC
Overall Height(H)	mm	544
Overall Width(W)	mm	600 ~ 605
Installation Length(L1)	mm	490 ~ 595
Mounting Length(L2)	mm	490 ~ 595
Height Between Axeles(H1)	mm	307 ~ 335
Installation Width(W1)	mm	375 ~ 472
Pin Diameter(Φ)	mm	80 ~ 120
Reference DWG.
