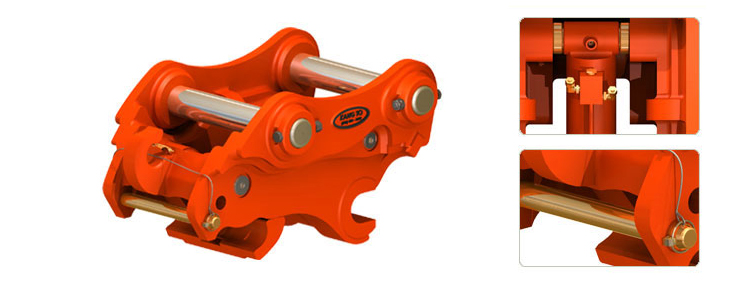

Quick-coupler(KTP Series) - KTP800

Quick-coupler(KTP Series)

ITEM	Unit	KTP800	Application Model
Overall Length(L)	mm	900 ~ 920	SOLAR170W, SOLAR200W, SOLAR200LC, SOLAR210W-V, SOLAR220LC, DX210W, EC200B, EC210, MX8W, MX8W-2, MX202W, MX222, MX225, ROBEX1700W, ROBEX170W-3, ROBEX2000W, ROBEX2200LC, CAT320C, EW170 HE205W, HE220LC, HX80W
Overall Height(H)	mm	470 ~ 480
Overall Width(W)	mm	510 ~ 518
Installation Length(L1)	mm	450 ~ 500
Mounting Length(L2)	mm	450 ~ 500
Height Between Axeles(H1)	mm	246 ~ 286
Installation Width(W1)	mm	305 ~ 340
Pin Diameter(Φ)	mm	70 ~ 80
Reference DWG.
