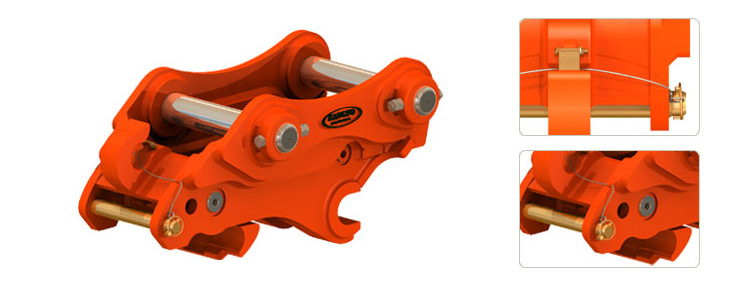

Quick-coupler(KTP Series) - KTP300

Quick-coupler(KTP Series)

ITEM	Unit	KTP300	Application Model
Overall Length(L)	mm	560 ~ 585	SOLAR 50, SOLAR 55V, SOLAR 50W-W, SOLAR 55W-VGP SOLAR 38 EC55, MX3W, MX55 ROBEX 500, ROBEX 550-3A, ROBEX 555 ROBEX 555-7, ROBEX 80W SE 40W HE50A TEREX 820
Overall Height(H)	mm	280 ~ 295
Overall Width(W)	mm	260 ~ 295
Installation Length(L1)	mm	240 ~ 300
Mounting Length(L2)	mm	240 ~ 300
Height Between Axeles(H1)	mm	175 ~ 180
Installation Width(W1)	mm	150 ~ 180
Pin Diameter(Φ)	mm	45 ~ 50
Reference DWG.
