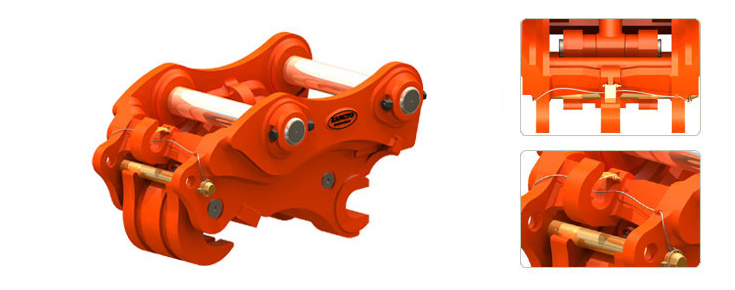

Quick-coupler(KT Series) - KT1400

Quick-coupler(KT Series)
ITEM Unit KT1400 Application Model
Overall Length(L) mm

976 ~ 1143

SOLAR340, SOLAR360, SOLAR370, SOLAR400, SOLAR420, SOLAR450LC-V
DX340, DX350
EC360BLC, EC460B,
MX352, MX452,
ROBEX5000LC-7, ROBEX3200LC-7,
ROBEX3600LC-3, ROBEX3600LC-7
ROBEX3700, ROBEX4500LC-7
CAT330CL, CAT330DL, CAT330LME
CAT345, HL360
Overall Height(H) mm

558 ~ 610

Overall Width(W) mm

606 ~ 663

Installation Length(L1) mm

520 ~ 590

Mounting Length(L2) mm

520 ~ 590

Height Between Axeles(H1) mm

337 ~ 360

Installation Width(W1) mm

386 ~ 439

Pin Diameter(Φ) mm

90 ~ 120

Reference DWG.
