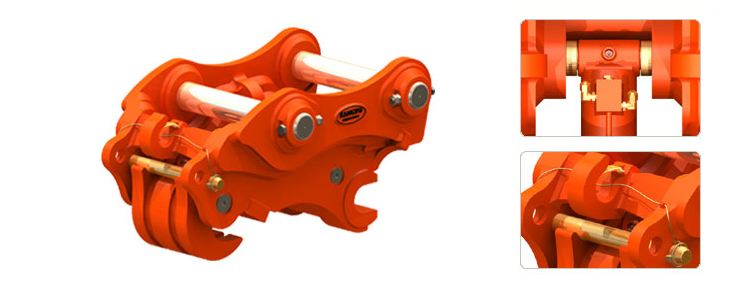

Quick-coupler(KT Series) - KT1000
Quick-coupler(KT Series)
ITEM | Unit | KT1000 | Application Model |
---|---|---|---|
Overall Length(L) | mm | 1016 ~ 1047 |
SOLAR 280LC, SOLAR 290LCV, SOLAR 300LCV, DX300LC EC240, EC290BLC, MX292LC, MX295LS, MX255, ROBEX2800K, ROBEX2800KLC, ROBEX2900, ROBEX2900LC-3 ROBEX2900LC-7, ROBEX3000LC-7, CAT324CL, CAT324DL, CAT325CL, CAT325DL |
Overall Height(H) | mm | 551 | |
Overall Width(W) | mm | 604 ~ 582 |
|
Installation Length(L1) | mm | 480 ~ 600 |
|
Mounting Length(L2) | mm | 480 ~ 600 |
|
Height Between Axeles(H1) | mm | 307 ~ 335 |
|
Installation Width(W1) | mm | 375 ~ 472 |
|
Pin Diameter(Φ) | mm | 80 ~ 120 |
|
Reference DWG. |
