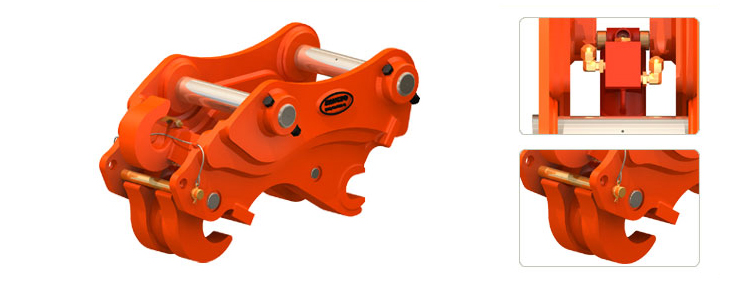

Quick-coupler(KT Series) - KT300

Quick-coupler(KT Series)

ITEM	Unit	KT300	Application Model
Overall Length(L)	mm	560 ~ 600	SOLAR 50, SOLAR 55V, SOLAR 50W-W, SOLAR 55W-VGP SOLAR 38 EC55, MX3W, MX55 ROBEX 500, ROBEX 550-3A, ROBEX 555 ROBEX 555-7, ROBEX 80W SE 40W HE50A TEREX 820
Overall Height(H)	mm	300
Overall Width(W)	mm	252 ~ 297
Installation Length(L1)	mm	230 ~ 310
Mounting Length(L2)	mm	230 ~ 354
Height Between Axeles(H1)	mm	170 ~ 200
Installation Width(W1)	mm	155 ~ 200
Pin Diameter(Φ)	mm	45 ~ 50
Reference DWG.
