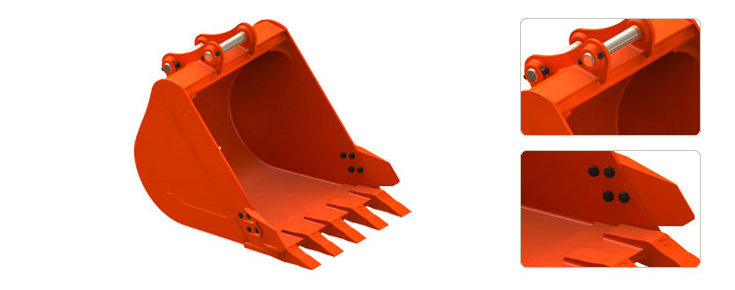

Products Bucket - 7~13.5ton
Bucket
| ITEM | Unit | 7~13.5 ton |
|||
|---|---|---|---|---|---|
| WIDE | STD | NARR | |||
| Overall Length(L) | mm | 1270 |
1130 ~ 1447 |
||
| Overall Height(H) | mm | 612 ~ 824 |
|||
| Overall Width(W) | mm | 1254 |
878 ~ 1105 |
380 ~ 540 |
|
Installation Length(L1) |
mm | 290 ~ 376 |
|||
Installation Width(W1) |
mm | 180 ~ 250 |
|||
Application Model |
ZX70LC SK70SR SK135SR SK140SR |
||||
| Reference DWG. |  |
||||
| Attachment | Ordinary positon |  |
|||
| Back positon |  |
||||
