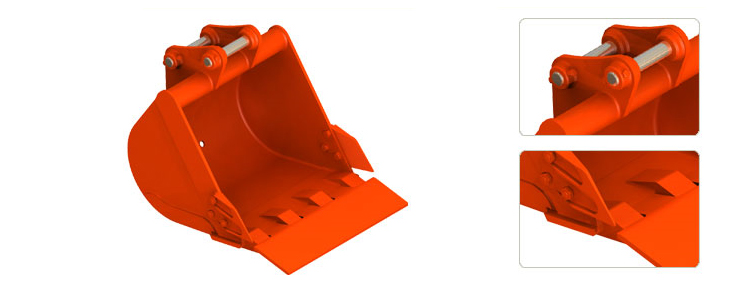

Products Bucket - 2~3ton
Bucket
| ITEM | Unit | 2~3 ton |
|||
|---|---|---|---|---|---|
| WIDE | STD | NARR | |||
| Overall Length(L) | mm | 803 ~ 895 |
|||
| Overall Height(H) | mm | 371 ~ 415 |
|||
| Overall Width(W) | mm | 800 ~ 900 |
580 ~ 614 |
284 | |
Installation Length(L1) |
mm | 180 ~ 200 |
|||
Installation Width(W1) |
mm | 121 ~ 140 |
|||
Application Model |
SK20SR, SK30SR, SOLAR030, ZX20U-2, ZX27U-2, ZX30U-2,, 20NX2, 25NX2, 30NX2, TB23B, TB28FR, VI020, VI030, MX55, MX3W, ROBEX35-7 |
||||
| Reference DWG. |  |
||||
| Attachment | Ordinary positon |  |
|||
| Back positon |  |
||||
